Features
- Membrane Switch with PLC control board.
- Magnetic Closed Ink cup – Minimize Ink consumption
- Electro-pneumatic control – Required 6 bars.
- Auto Pad Cleaning System – User Friendly, Increased Production & Quality of Printing. Flatten wide & Big Textile
- Center Marking Light provision – User Friendly, Increased Production & Quality of Printing.
- Double Ink / Print cycles, dwell & delay before print
- X & Y axis Work Table & Pad Adjusters. Added Tilting also.
- Air Blower.
- Auto ink mixing mode.
- Heavy duty construction with full Safety cabinet – User Friendly, Inline process can use for as per lean team suggestion to increase Production & Quality.
For further details contact us now

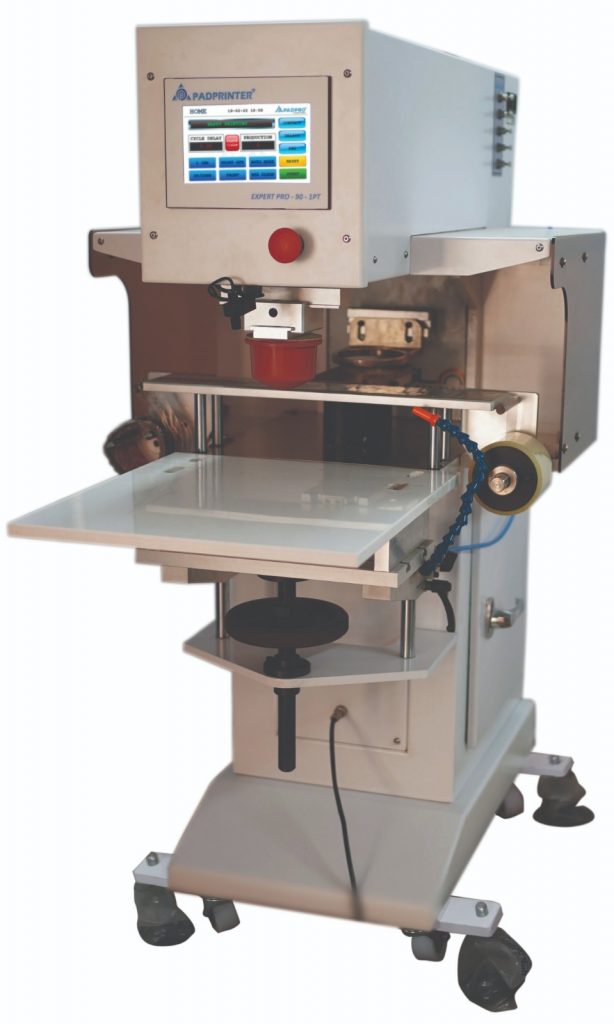

Tagless Expert - 90 - 2PT
Specifications of tag less machines
Model | Max print color | Cliche size | Max print / hr | Max print area |
|---|---|---|---|---|
EXPERT 60-2PT | TWO | 70 X 140 | 2200 / hr | 48 dia |
EXPERT 90-2PT | TWO | 100 X 225 | 1800 / hr | 72 dia |
EXPERT 130-2PT | TWO | 150 x 300 | 1200 / hr | 115 dia |
EXPERT 60-1PT | SINGLE | 70 X 140 | 2700 / hr | 48 dia |
EXPERT 90-1PT | SINGLE | 100 X 225 | 2400 / hr | 72 dia |
EXPERT 130-1PT | SINGLE | 150 X 300 | 2000 / hr | 115 dia |
COMPACT 60-1PT | SINGLE | 70 X 140 | 2700 / hr | 48 dia |
COMPACT 90-1PT | SINGLE | 100 X 225 | 2400 / hr | 72 dia |
COMPACT 130-1PT | SINGLE | 150 X 300 | 2000 / hr | 115 dia |

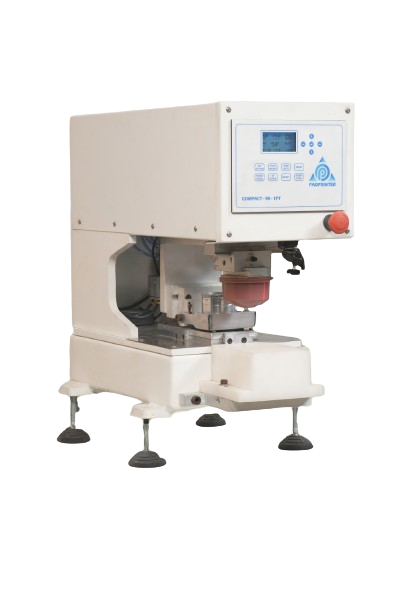

COMPACT SERIES
- Membrane Switch with PLC control board.
- Magnetic Closed Ink cup – Minimize Ink consumption
- Electro-pneumatic control – Required 6 bars.
- Auto Pad Cleaning System – User Friendly, Increased Production & Quality of Printing. Flatten wide & Big Textile
- Center Marking Light provision – User Friendly, Increased Production & Quality of Printing.
- Double Ink / Print cycles, dwell & delay before print
- Air Blower.
- Auto ink mixing mode.
- Heavy duty & Compact construction – User Friendly, Inline process can use for as per lean team suggestion to increase Production & Quality.
For further details contact us now
Specifications of Compact Series machines
Model | Max print color | Cliche size | Max print / hr | Max print area |
|---|---|---|---|---|
COMPACT 60-1PT | SINGLE | 70 X 140 | 2700 / hr | 48 dia |
COMPACT 90-1PT | SINGLE | 100 X 225 | 2400 / hr | 72 dia |
COMPACT 130-1PT | SINGLE | 150 x 300 | 2000 / hr | 115 dia |
